ARTbaffle

What is an ARTbaffle?

A baffle is a double-sided hanging panel. This doubles the sound absorption per m2. They are available in a range of dimensions and designs.

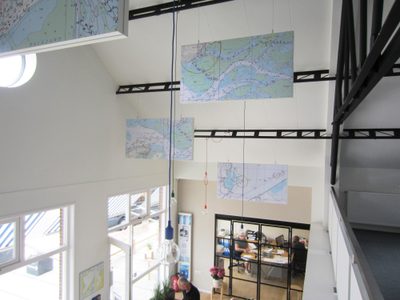

Artbaffle 90mm 1 print incatro

Applications of ARTbaffle

  • On ceilings: in frames with various dimensions
  • Office environments
  • Living environments
  • Halls and churches
  • Waiting rooms

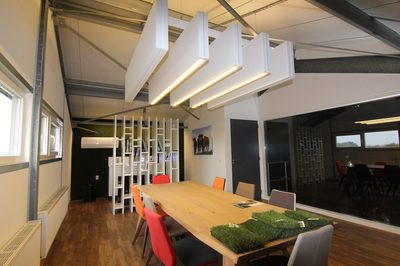

Artbaffle 90mm 32 incatro lamp

Choice of fabric or print

Designer fabrics

  • Many classic and modern fabric designs are possible in various widths. Ask about the possibilities for digital prints.
  • Very high quality digital prints in transfer printing on Trevira CS give a limitless range of aesthetic possibilities.
  • You can choose prints from our image bank, from a given artist or your own photo, or have a digital file used. The possibilities are unlimited.
Technical specifications
Acoustic value
Per side: NRC 0.90 Alpha W = 1
Fire-resistance rating
Frame / content A1, Fabric B
Depth
Acoustic core 2x 40 mm, total depth 90 mm
Weight
12 kg / m2
Frame colours
White RAL9016 and RAL9010, Grey-Aluminium RAL9006, Anthracite-Black RAL7021
Fabrics
Wide range of fabrics, plain or printed, smooth or texture (sample cards on request)
Mounting
stainless steel cables
Downloads
Factsheet
pdf
Download
Brochure Dutch
pdf
Download
Brochure German
pdf
Download
Ready for comfortable acoustics?
Request a free quote
